TBrowseMod group header text color
Publicado: Mié Nov 08, 2023 5:01 pm
por Timm
Hi!
How can I change the text color of TBrowseMod group headers?
Best regards, Timm
Re: TBrowseMod group header text color
Publicado: Jue Nov 09, 2023 6:35 pm
por Pedro Gil
Hi!
I'm not sure if I understood your question correctly but you have the following properties in the TBrowseMod class:
PROPERTY nClrHeaderPane
PROPERTY nClrHeaderText
PROPERTY nClrHeaderDivider
PROPERTY nClrHeaderHotPane
PROPERTY nClrHeaderHotText
PROPERTY nClrHeaderSelPane
PROPERTY nClrHeaderEditText
PROPERTY nClrHeaderEditPane
PROPERTY nClrHeaderEditTextFocus
PROPERTY nClrHeaderEditPaneFocus
Greetings!
Re: TBrowseMod group header text color
Publicado: Vie Nov 10, 2023 8:09 am
por Timm
Hi Pedro,
many thanks for your answer!

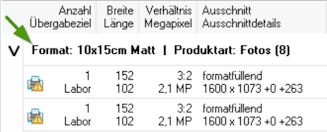

I am searching for something like nClrGroupHeaderEditText in order to change the color of this text:
- 2023-11-10 08_00_40-COPPIO.png (23.5 KiB) Visto 148 veces
I tried it with this:
Código: Seleccionar todo
METHOD BrwArtikelDrawGroupHeader( oSender, oSt, cGroup, nRecord, hDC, aRect ) CLASS TForm1
SetTextColor( hDC, RGB( 47, 53, 65 ) ) // this does not work
SelectObject( hDC, ::oFontBold:Handle )
RETURN Nil
Best regards, Timm
Re: TBrowseMod group header text color
Publicado: Vie Nov 10, 2023 4:39 pm
por ignacio
Hello,
Try manipulating oBrowseMod:oSupra. Is TheaderMod control.
Regards,
Re: TBrowseMod group header text color
Publicado: Sab Nov 11, 2023 8:35 am
por Timm
Hi,
manipulating oBrowseMod:oSupra did not work so I modified this:
Código: Seleccionar todo
METHOD PaintGroupHeader( hDC, nItem, aRect, nRecord ) CLASS XBrwModGrid
...
nClrT := ::nClrText
nClrP := ::nClrPane
lRet := :OnDrawGroupHeader( oSt, @cGrp, nRecord, hDC, aTmp, @nClrT, @nClrP )
...
RETURN NIL
The event OnDrawGroupFooter already has the parameters nClrText and nClrPane.
Perhaps you can add them also to OnDrawGroupHeader?
Best regards, Timm
Re: TBrowseMod group header text color
Publicado: Sab Nov 11, 2023 9:12 am
por ignacio
Sorry. My mistake, I thought you were referring to column groupings.
I did not include those parameters on the header because I thought there were not necessary. But, no problem to include them. BTTW I prefer that hDC and aRect continue to be the last parameters even if it brakes some code (that surely will not happen). So, this will be the way that is already modified in the source code:
EVENT OnDrawGroupHeader( oSender, oSt, BYREF cGroup, nRecord, BYREF nClrText, BYREF nClrPane, hDC, aRect )
Regards
Re: TBrowseMod group header text color
Publicado: Dom Nov 12, 2023 9:31 am
por Timm
Thank you, Ignacio!
